T60(5) Color Light Booth

T60(5) According to users’ needs, various standard light sources recognized by the International Commission on Illumination (CIE) can be provided, meeting all major visual evaluation standards, including AS, ASTM, BSI, DIN, and ISO international standards, such as ISO 3664, ISO 3668, ISO 13076, ISO 23603, AATCC EP9, ASTM D1729, DIN 6173, CIE S025/E, BS 950 Pt.2, etc.

Brand: TILO
Made in China
Configuration: D65, TL84, F, UV,CWF five light sources
Weight: 23Kg
Dimensions(WxDxH): 710x405x570 mm

    TILO T60(5) color light booth can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.

Features:

        1. TILO Color light booth render color more accurately. With 5 different light sources(D65, TL84, CWF, F, UV), which can detect the metamerism.

        2. Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.

        3. Easy to operate by using individual switches for each light source.

        4. Elapsed time meter for tracking optimal lamp replacement.

        5. Automatically alternating among light sources.

        6. No warm-up time or flickering which insures quick and reliable color judgment.

        7. Economic power consumption and low heat generation for high light efficiency.

        8. The dimension can be made by customized.

Specifications:



Order No.	Name	Model	D65	TL84	F	UV	CWF	Voltage
10115	Standard light source booth	T60(5) five light source(220V)	2 pcs	2 pcs	4 pcs	1 pcs	2pcs	220V/50Hz
10815	Standard light source booth	T60(5) five light source(115V)	2 pcs	2 pcs	4 pcs	1 pcs	2pcs	115V/60Hz

        Optional accessories: light source diffuser45 degree standard stand.

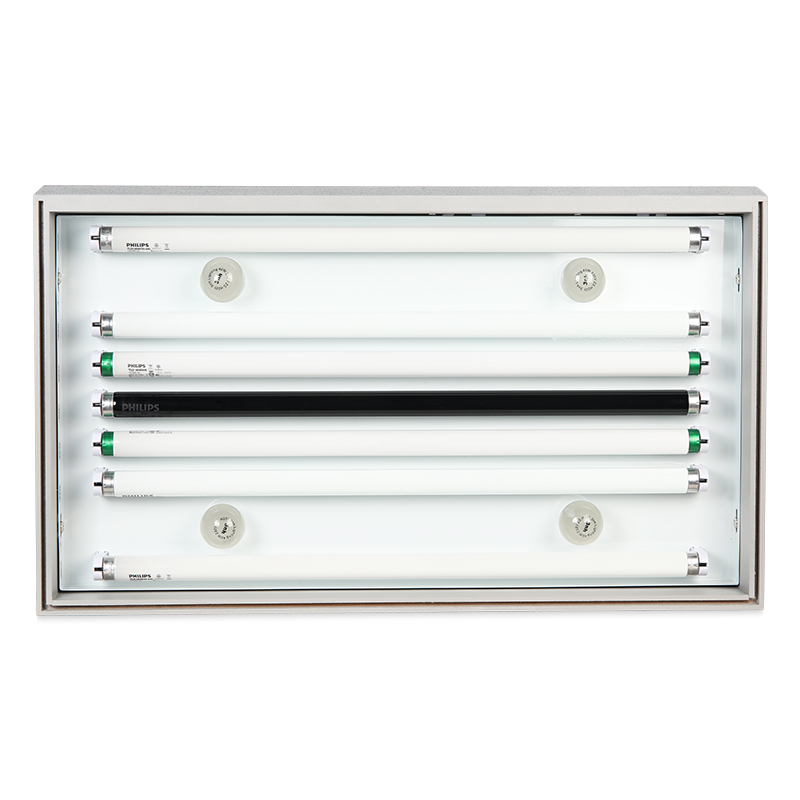

        Light Sources:





Light Source	Color viewing booths application	Color temperature(k)	Power(W)
D65	International standard Artificial Daylight	6500	18
TL84	Applied to stores in Europe, Japan and China	4000	18
CWF	(Cool White Fluorescent) American Standard	4150	18
F/A	"Sun-setting Light Yellow" incandescent light source (imitation of sunset)	2700	40
UV	Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments	Wave length:365nm	20
TL83	Warm White Fluorescent American Standard	3000	18
