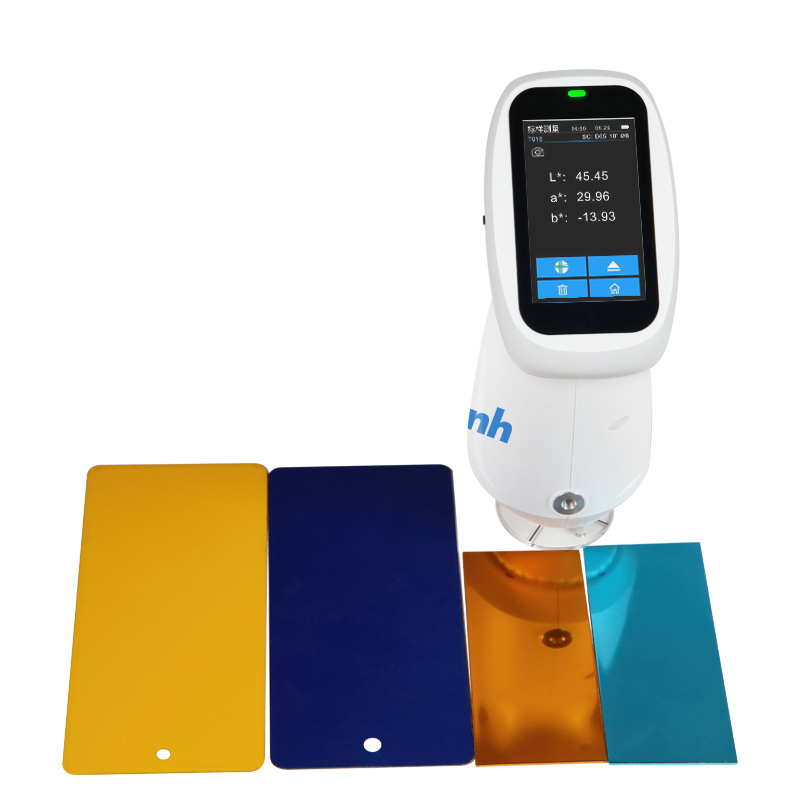

PS2050 spectrocolorimeter

    "Fat girl" is the nickname of PS20 series domestic color spectrometer. It is serious about color measurement and high user satisfaction.


    PS2050 "Fat girl" spectrocolorimeter is 3nh developed by CMOS dual-channel spectrocolorimeter sensor, which is not only a colorimeter, but also a spectrocolorimeter,with excellent repeatability and the inner-instrument error. The measurement data is stable, accurate and reliable. with a comfortable and round appearance more people love it. It also has quality management software facilitate quality monitoring and data management.


    PS2050 spectrocolorimeter is equipped with double apertures MAV:Φ8mm/Φ10mm、SAV: Φ4mm/Φ5mm flat , widely used for plastic electronics, paint ink, textile and garment printing, printing, ceramics and other industries color difference quality control. UV is included for the measurement of fluorescent samples.


Technical Advantages

1、 Adopt D/8 optical structure and SCI/SCE mode.

    PS2050 spectrocolorimeter adopts D/8(diffused illumination, 8-degree viewing angle) which is widely applicable in the world, and SCI/SCE (specular component included/specular component excluded) Synthesis technology. It is suitable for color management and quality control in various industries such as color matching and coating, textile, plastic, food, building materials, cosmetics, etc.

Adopt D/8 optical structure and SCI/SCE mode.

2、Adopt full waveband balanced LED light source + UV light

    The 400~700nm full waveband balanced LED light source and UV light ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of white LED in specific waveband, Fluorescent materials can also be easily measured and ensures the measurement speed and accuracy of the measurement results.

Adopt full waveband balanced LED light source + UV light

3、 CMOS dual beam splitting sensor

    High speed and high sensitivity CMOS dual beam splitter sensor makes color data processing more efficient and accurate.

CMOS dual beam splitting sensor

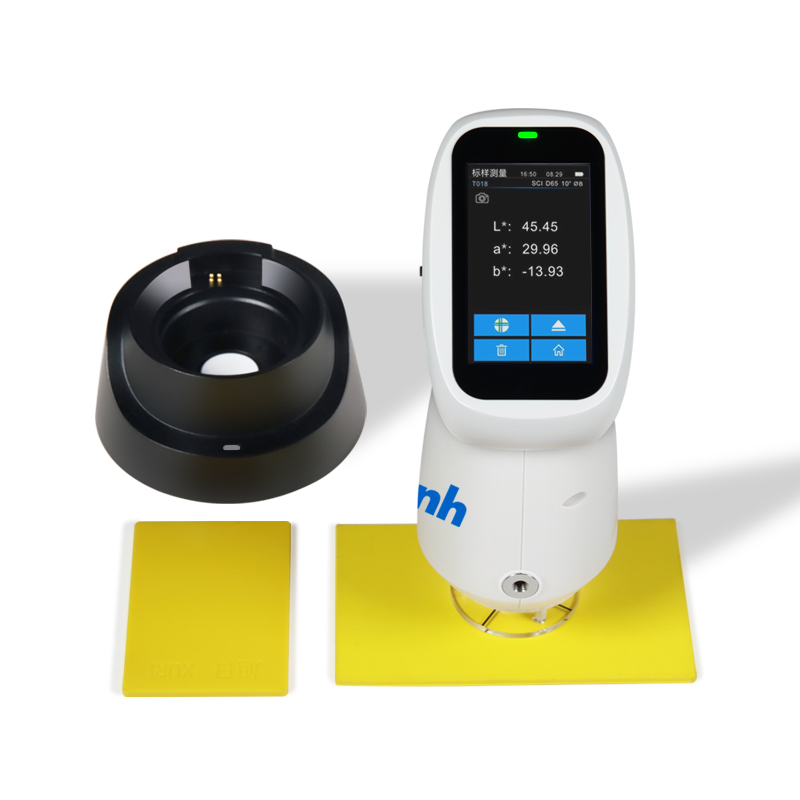

4、Contact automatic whiteboard calibration

    The spectrocolorimeter PS2050 is equipped with an intelligent calibration base.Contact automatic whiteboard calibration is available, professional standard whiteboard reflectivity R%≥95%, good surface uniformity. It has high stability and can obtain repeated and accurate data.

Contact automatic whiteboard calibration

5、Multiple color measurement spaces, multiple illumination source

    The spectrocolorimeter PS2050 support CIE LAB,XYZ,Yxy,LCh,CIE LUV,S- RGB,βxy,DIN Lab99 Color space and D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/ U30), U35,NBF,ID50,ID65 multiple illumination source,Meet different measurement requirements.

Multiple color measurement spaces, multiple illumination source

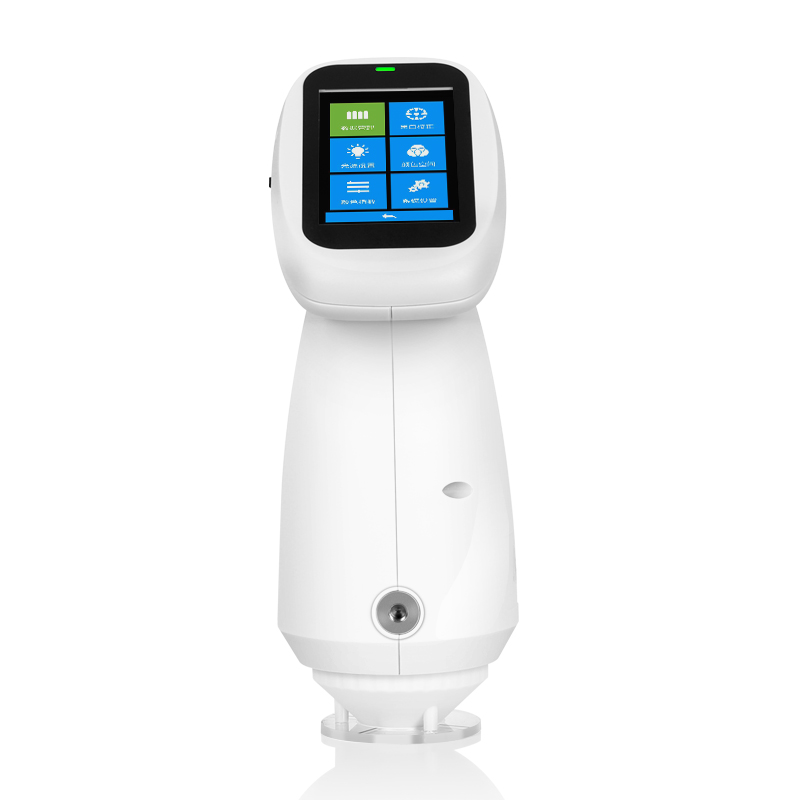

6、Ergonomic design and easy measurement

    The fitted palm is suitable for continuous detection, which makes you fast and easy to use. An easy to measure device for automatic measurement is added. Which is portable, fast, easy to measure and use.

Ergonomic design and easy measurement

7、Cloud storage, carrying massive color databases

    Use apps and applets to establish your private color database in the cloud, without carrying heavy color cards, you can share them with partners anytime and anywhere.

Cloud storage, carrying massive color databases

8、Calibration Certificate

    Each PS2050 spectrocolorimeter has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of authoritative verification departments, and the measurement data are traceable to the National Metro technical Institute to ensure the authority of the instrument test data.


9、The camera can clearly observe the measured area

    The built-in camera is used for view taking and positioning. Through real-time view taking, it can accurately determine whether the measured part of the object is the target center, which improves the measurement efficiency and accuracy.

The camera can clearly observe the measured area

10、Color management software

    Quality management software Andriod, IOS, Windows, Wechat app and Hongmeng system are applicable to quality monitoring and color data management in various industries. Data the user's color management. compare colon differences, and generate test reports.


Technical Specification

                Model                PS2050 spectrocolorimeter
                Optical Geometry                D/8(diffused illumination, 8-degree viewing angle), SCI/SCE (specular component included/specular component excluded) Mode, Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
                Characteristic                Adopt CMOS dual beam splitting sensor;Used for color difference quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, also for fluorescence sample measurement.
                Light Source                Combined full spectrum LED light source, UV light source
                Integrating Sphere Size                Φ40mm
                Sensor                CMOS dual beam splitting sensor
                Wavelength Range                400-700nm
                Measuring Aperture                Two Apertures:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm
                Specular Component                SCI/SCE
                Color Space                CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99
                Color Difference Formula                ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
                Other Colorimetric Index                Spectral reflectance, WI(ASTM E313,CIE/ISO,AATCC,Hunter), YI(ASTM D1925,ASTM 313),Metamerism Index Mt,Staining Fastness, Color Fastness,Color Strength, Opacity,555 tone classification, Munsell(C/2)(Partially realize through the PC software /APP software)
                Observer Angle                2°/10°
                Illuminant                D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30),U35,NBF,ID50,ID65(Partially realize through the PC software /APP software)
                Display                Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
                Measuring Time                About 1s
                Repeatability                Chromaticity value: MAV/SCI, within ΔE*ab 0.03 (After preheating and correction, the average value of the whiteboard was measured for 30 times at an interval of 5s);Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400nm to 700nm: within 0.18%)
                Inter-instrument Error                MAV/SCI, Within ΔE*ab 0.3
(Average for 12 BCRA Series II color tiles)
                Displayed Accuracy                0.01
                Measured Reflectance   Range                0-200%
                Reflectance Resolution                0.01%
                Measurement Mode                Single Measurement, Average Measurement(2-99times)
                Locating Method                Stabilizer position+camera locating
                White Calibration mode                Contact type automatic calibration
                Dimension                94X68X188mm
                Weight                About 270g
                Battery                Lithium battery,3.7V,5000mAh,8000 cycles in 8 hours
                Illuminant Life Span                More than 1.2 million measurements over 10 years
                Screen                2.8 inch TFT true color, Capacitive Touch Screen
                Interface                USB,Bluetooth®5.0
                Data Storage                Standard 500Pcs, Sample 10000Pcs(One data is able to include SCI/SCE); PC mass storage
                Software support                Andriod,IOS,Windows,Wechat small program, Hongmeng
                Language                Simplified Chinese, English, Traditional Chinese
                Operating Environment                0~40℃, 0~85%RH (no condensing),Altitude < 2000m
                Storage Environment                -20~50℃, 0~85%RH (no condensing)
                Standard Accessory                Power Adapter, USB Cable, User Guide, SQCX PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover,  Wrist strap, Aperture
                Optional Accessory                USB Micro Printer, Powder Test Box
                Notes                Technical parameters are only for reference, subject to the actual sale of  the product
