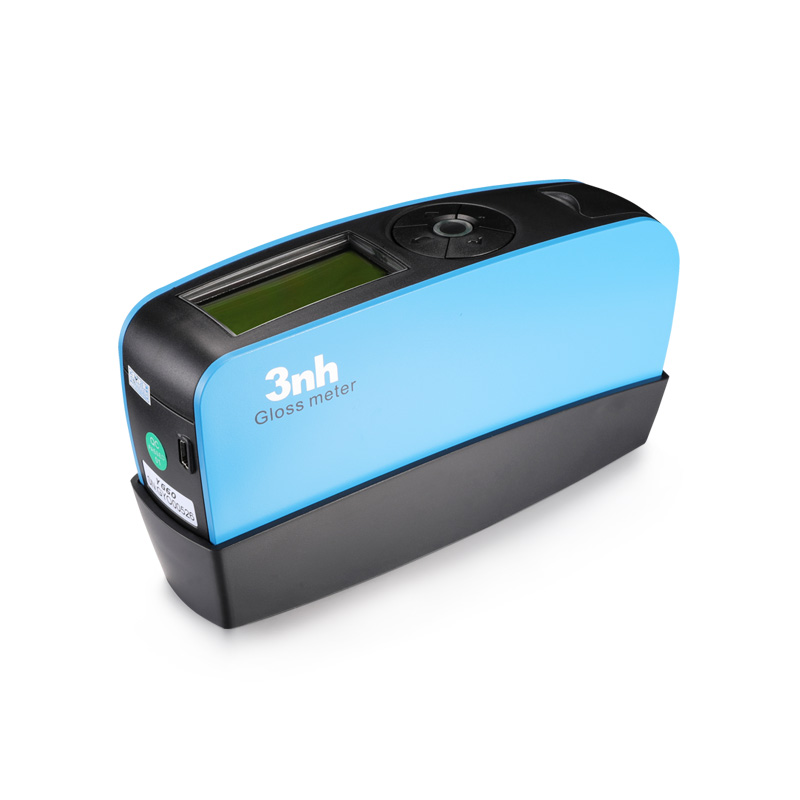

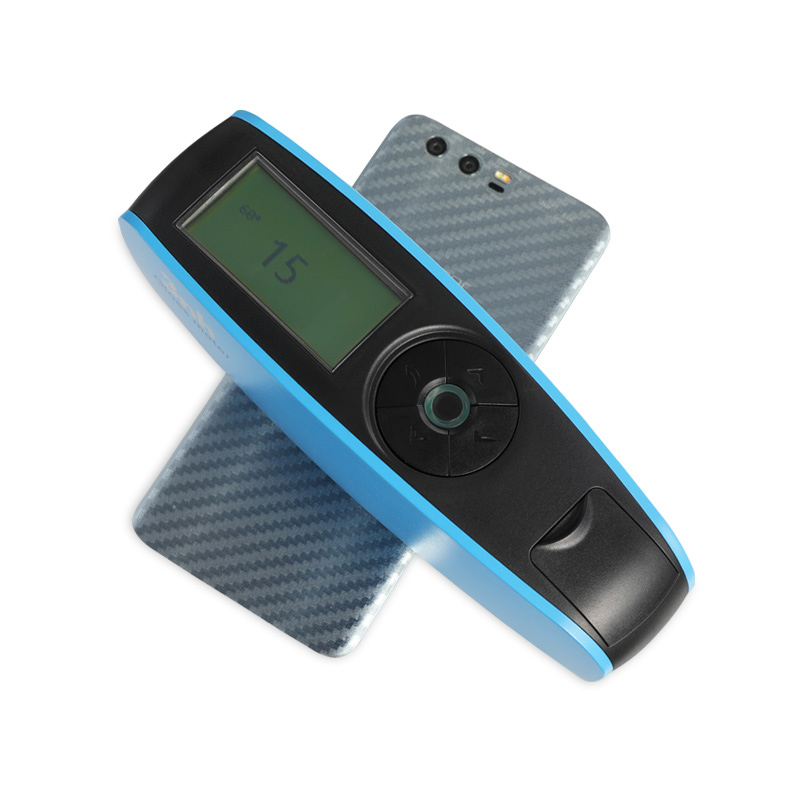

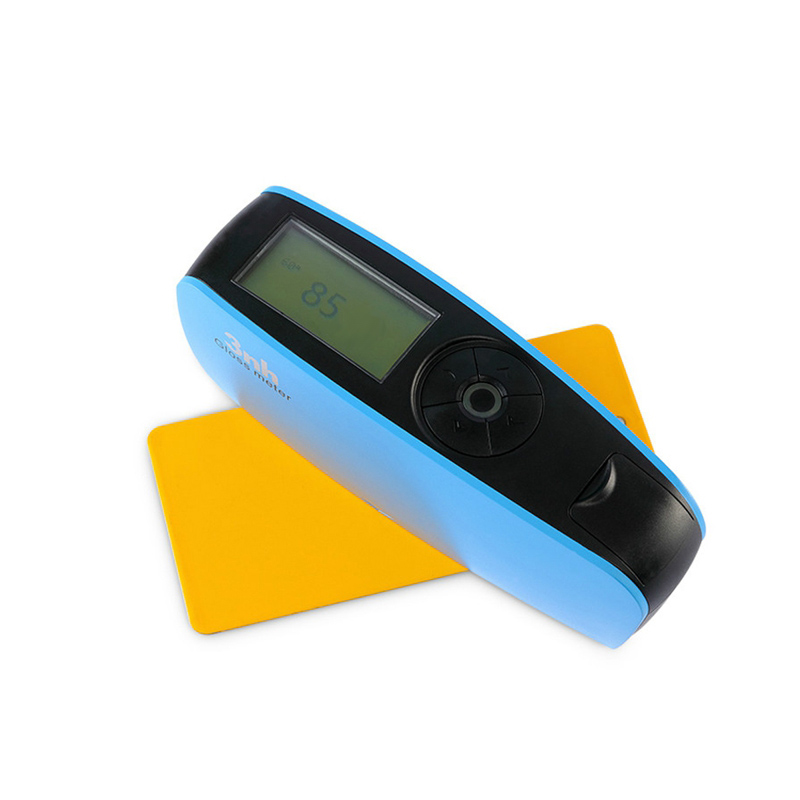

YG60S 60°Economic Gloss Meter

YG60S 60°Economic Gloss Meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the second grade requirements of JJG696.


Features:


1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet the second grade requirements of JJG696;
4. Auto Power-off within optional 30-120 seconds;
5. Comply to ISO2813, ASTM523, GB/T9754;


Application:


Widely used in the filed of paints, coating, plastics, ink, rubber, printing, paper, glass, handware, ceramic, marble etc.


Specifications:


Model YG60S 60°Economic Gloss Meter
Measuring Angle 60°
Measuring Area 60°: 0-200GU
Division Value 1GU
Measuring Modes Basic mode
Measuring Time 0.5S
Repeatability 0~100GU : ±0.5GU; 100~2000GU : ±0.5%GU
Accurate Conform with JJG696 second grade requirements of gloss meter
Auto Power-off Time 30s
Long-time Calibration /
Language Chinese & English
Storage /
Display 2.3 inch white and black screen
Size 160*52*84mm
Weight About 300g

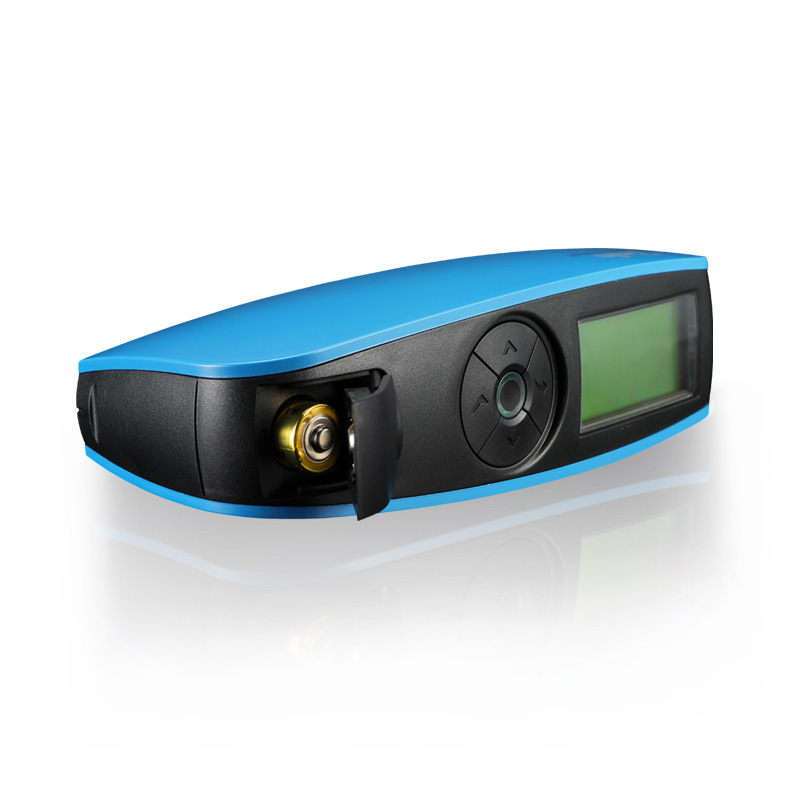

Power Supply 1pc dry-cell battery(can measure 10000 times) or use USB Charge
Interface USB
PC Software /
Operation Temperature Range 0-40℃(32-104° F)
Storage Temperature Range -20-50℃(-4-122° F)
Humidity Range < 85% RH, without condensation
Standard Accessories User manual, calibration plate
Optional Accessories Miniature printer
Notification: the technical parameter is only for reference
